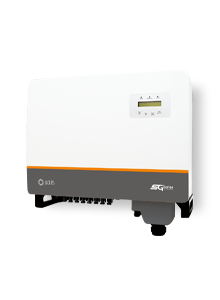

S5-GC25K - Series 5 Three Phase Grid-Tied Inverter
Product Features:
- Max. efficiency of 98.5%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 32A input per MPPT, 16A input for each PV string
- Maximum AC output power of 27.5kW
- 3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty, extendable to 10 or 20-years.
Register on SolisCloud, to support remote upgrade and control.
SA: NRS-097-2-1 Certified and CoCT Approved.
UK: G99 Certified.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Please note that this inverter does not include a data logger, CT, meter or export power manager.
The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS.
The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger.
These items are sold separately.
