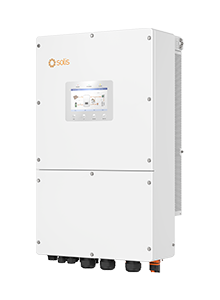

Solis S6 Three Phase 40kW High Voltage Hybrid Inverter

Solis Three Phase High Voltage Energy Storage Inverters Models

Introducing the new Solis S6-EH3P(30-50)K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(30-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Features:

Allowable PV of up to 80kW, on the 180-1000V MPPT.
4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
Supports Grid and Generator AC inputs.
Parallel up to 6 x inverters for up to 300kW of back-up load.
Battery Charge and Discharge current of up to 140A.
UPS transfer time of less than 10ms.
160% surge power for 2s to accommodate inductive loads.
Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
Current transformer ESCT-T50-300A/5A included in product packaging

Dyness stack 100 compatibility of up to 13 batteries per stack without exceeding the 800V battery range.

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	SOL-S6-EH3P40K-H
Wattage Rating	40000 w
Storage System Type	Full Hybrid
Max Ac Power	40000 w
Phases	Three Phase
Dc Startup Voltage	180.00 v
Has Dc Isolator	Yes
Max Dc Power Total	80000 w
Max Mppt Voltage	850.00 v
Number Of Mppt	4
Manufacturer Part Number	S6-EH3P40K-H (Display)
Warranty Years	5
Item Weight	73 Kg
