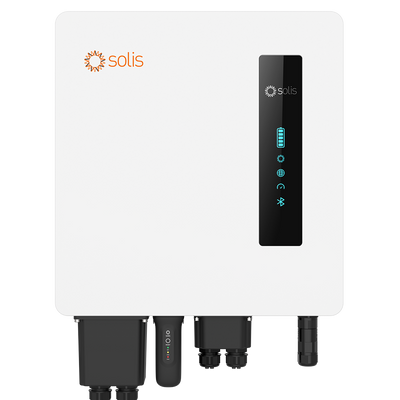

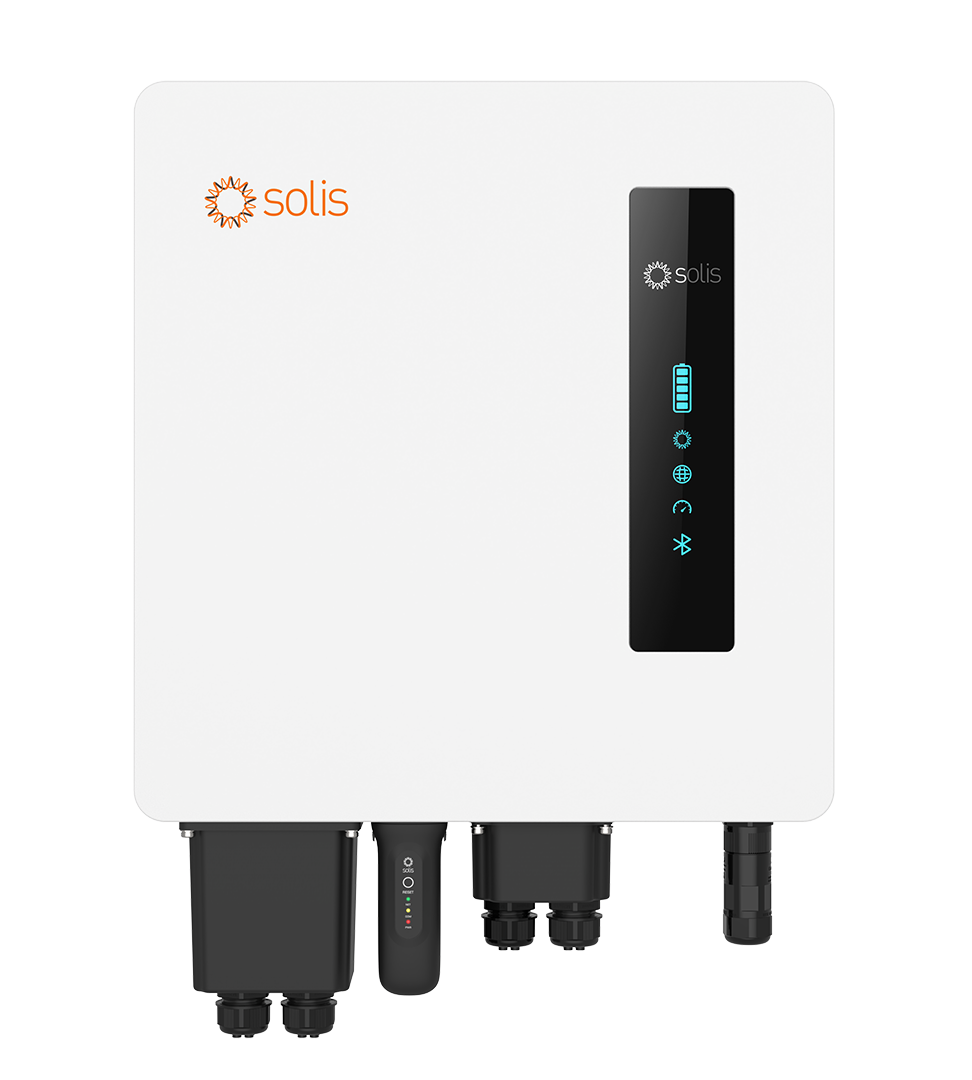

Solis Single Phase 5kW Low Voltage AC-Coupled Inverters

Solis

Solis Single Phase 5kW Low Voltage AC-Coupled Inverters

SOL-S6-EA1P5K-L

£580.00 exVAT (11.6p/Wp)
Sign in or create an account

Wattage Rating

5000 w

Storage System Type

AC Inverter

Phases

Single Phase

Warranty Years

5

All Technical Specifications

Extended warranty for

Documentation

General Product Documents – Solis Datalogger Guide

General Product Documents – Solis EA1PK EN 2025

IEC Certificates – Solis_certificate S6-EA1P(3-6)K-L_RED_V02

IEC Certificates – Solis_certificate_S6-EA1P(3-6)K-L_EMC_V01

General Product Documents – SOL-S6-EA1PK EN 2025

Other Features

Solis Single Phase Low Voltage AC-Coupled Inverters



S6-EA1P(3.6-6)K-L series is a new generation of AC coupled products, designed to provide photovoltaic energy storage upgrading solutions for new and existing installations

  • Supports Peak Shaving Mode Industry leading to a max 125A/6kW max charge/discharge rating
  • Provide intelligent time of use solution together with the monitoring group
  • Increased battery protection and operation features to extend battery life
  • Real-time battery monitoring, remote upgrade, and battery healing function to prolong battery life
  • 40-60V battery voltage range
  • 19.9kg weight
  • 1P66 Ingress protection

The S6 EA1P range comes with 2 x CTs in the box. The main CT can be extended to 15m. If the run from power source to inverter exceeds 15m then the SOL-METER-1PH-EASTRON is required.

Note: no EPS output / no ac back up available

Technical Specifications

Segen Part No SOL-S6-EA1P5K-L
Wattage Rating 5000 w
Storage System Type AC Inverter
Max Ac Power 5000 w
Phases Single Phase
Manufacturer Part Number S6-EA1P5K-L
Warranty Years 5
Item Weight 19.90 Kg
