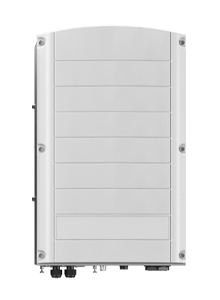

Synergy Secondary Unit with RapidShutdownDevice

SolarEdge

Synergy Secondary Unit with RapidShutdownDevice

SE-SYNERGY-RSD

£994.00 exVAT

Wattage Rating

0 w

Phases

Three Phase

Warranty Years

12

All Technical Specifications

Bundles that include this product

1 bundle

Documentation

General Product Documents – Solar Edge 3ph New Synergy Inverters Product Information April 2021

General Product Documents – Solar Edge Three Phase Inverter with Synergy Technology 03/2021 DS-00008-1.0-EU

General Product Documents – se_zero_feed_in_manufacturer_self_declaration_de

General Product Documents – SE-SYNERGY-RSD

Grid Certificates – se_commercial_three_phase_inverters_vde_ar_n_4105_certificate_germany

Other Features

Three Phase Inverter - Solar Edge Synergy Unit with Rapid Shut Down

  • Dimensions (H x W x D): 558 x 328 x 273mm
  • Weight: 32kg
  • Unit for Three phase inverter with Synergy technology with Automatic Rapid Shutdown upon AC grid disconnect.
Warning: Solar Edge Synergy Unit can not be used on its own, it always requires a Synergy Manager to work.

Technical Specifications

Segen Part No SE-SYNERGY-RSD
Wattage Rating 0 w
Max Ac Power 49990 w
Phases Three Phase
Dc Startup Voltage 0.00 v
Has Dc Isolator Yes
Max Dc Power Total 67500 w
Max Mppt Voltage 0.00 v
Manufacturer Part Number SESUK-RWR0INNN4
Warranty Years 12
Item Weight 32 Kg
