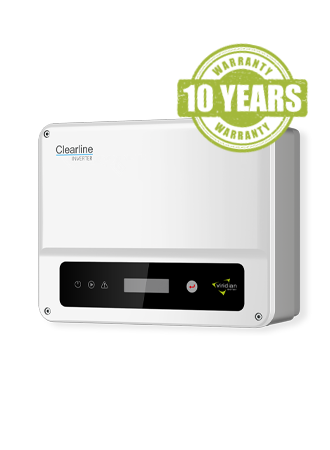

Viridian Clearline 1.0kW 1PH Inverter 1MPPT with integrated DC isolator switch

Viridian

Viridian Clearline 1.0kW 1PH Inverter 1MPPT with integrated DC isolator switch

VIR-CSI1000

£203.00 exVAT (20.3p/Wp)
Sign in or create an account

Wattage Rating

1000 w

Phases

Single Phase

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Viridian Clearline 1.0-3.0 kW Inverter

General Product Documents – Viridian Clearline 1.0-3.0 kW Inverter EN

General Product Documents – Viridian Clearline 1.0-3.0 kW Inverter EN

Other Features

Viridian Clearline Inverter - 1.0kW

  • Single Phase, 1 MPPT
  • DC switch and surge protection
  • Max efficiency of 97.2%
  • IP65 rated
  • 10 year warranty
  • Smart Control - Generation monitoring and optional export limitation

Technical Specifications

Segen Part No VIR-CSI1000
Wattage Rating 1000 w
Max Ac Power 1000 w
Phases Single Phase
Dc Startup Voltage 40.00 v
Has Dc Isolator Yes
Max Dc Power Total 1500 w
Max Mppt Voltage 500.00 v
Number Of Mppt 1
Manufacturer Part Number VIR-CSI1000
Warranty Years 10
Item Weight 5.80 Kg
