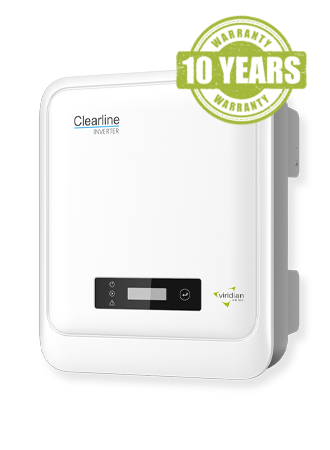

Viridian Clearline 5.0kW 1PH Inverter 2MPPT with integrated DC isolator switch

Viridian

Viridian Clearline 5.0kW 1PH Inverter 2MPPT with integrated DC isolator switch

VIR-CSI5000

£316.77 exVAT (6.3p/Wp)
Sign in or create an account

Wattage Rating

5000 w

Phases

Single Phase

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Viridian Clearline 3.6-6.0 kW Inverter EN

General Product Documents – Viridian Clearline 3.6-6.0 kW Inverter EN

General Product Documents – Viridian Clearline 3.6-6.0 kW Inverter EN

Other Features

Viridian Clearline Inverter - 5.0kW

  • Single Phase, 2 MPPT
  • DC switch and surge protection
  • Max efficiency of 97.9%
  • IP65 rated
  • 10 year warranty
  • Smart Control - Generation monitoring and optional export limitation

Technical Specifications

Segen Part No VIR-CSI5000
Wattage Rating 5000 w
Max Ac Power 5000 w
Phases Single Phase
Dc Startup Voltage 195.00 v
Has Dc Isolator Yes
Max Dc Power Total 7500 w
Max Mppt Voltage 600.00 v
Number Of Mppt 2
Manufacturer Part Number VIR-CSI5000
Warranty Years 10
Item Weight 16.56 Kg
