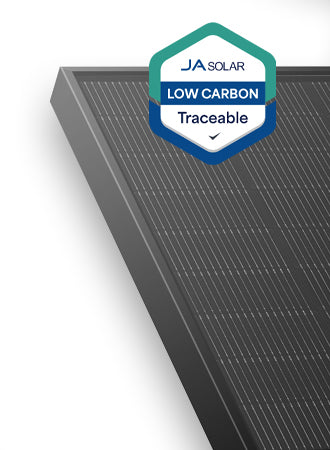

JA Solar: 450W n-type Bifacial Double Glass with MC4 Connectors

JAM54D-41-450-LB-TSLC-AB-MC4

Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response and better temperature coefficient.

Features:

Higher power generation better LCOE
Better weak illumiation response
N-type with very lower LID
Better Temperature Coefficient

Warranty:

25-year product warranty
30-year linear power output warranty

Note: 1200mm landscape cable included

JA Solar Integrated Traceable System.

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	JAM54D-41-450-LB-TSLC-AB-MC4
Wattage Rating	450 w
Half Cell	No
Maximum Power Current Imp	13.64 A
Maximum Power Voltage Vmp	32.99 v
Module Cell Type	Double Glass
Number Of Cells	108
Open Circuit Voltage Voc	39.10 v
Panel Depth	30 mm
Panel Height	1762 mm
Panel Width	1134 mm
Short Circuit Current Isc	14.40 A
Isc	0.046
Temperature Coefficient Pmax	-0.300
Temperature Coefficient Voc	-0.260
Manufacturer Part Number	JAM54D-41-450-LB-TSLC-AB-MC4
Panel Performance Warranty	25 Year Linear
Warranty Years	25

450W N-type Double Glass Bifacial LB Traceable Low Carbon 54 Cell All Black MC4
