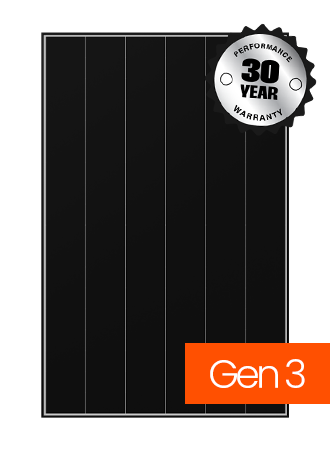

485W Neostar 3P N-Type Mono-Glass ABC 54 Cell Black Frame MC4 Gen 3

Aiko Monocrystaline N-type ABC - Neostar Gen 3

AIKO-A485-MCE54Mw

New for summer 2025, the third generation of AIKO modules boast even higher efficiency with a larger generating area, and 15-20kW power rating increase over Gen2 panels!

Precision Overlap Soldering is the technology that has eliminated gaps between cells and combined with hidden busbars, Gen3 modules have both a beautiful true-black appearance and larger active surface.

Up to 25.0% Efficiency 470W-500W
Maximum Series Voltage: DC1500V
Panel Rating (485W) Efficiency: 24.3%
Cable Length: 1.2m
Connector: MC4 EVO2
Product Warranty: 15 Years
Performance Warranty: 30 Years

Aiko Key Features

Winner of 2023 intersolar innovation award, 2023 Red dot design award and 2024 ESG transparency
No.1 efficiency in the market
Cell-level partial shade optimisation (one and only in the industry)
High temperature restriction for fire safety
Micro-crack resistance
Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)

Note: 1200mm landscape cable included

Videos

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	AIK-A-MCE54-485-BF-G3
Wattage Rating	485 w
Half Cell	No
Maximum Power Current Imp	14.02 A
Maximum Power Voltage Vmp	34.60 v
Number Of Cells	54
Open Circuit Voltage Voc	41.00 v
Panel Depth	30 mm
Panel Height	1762 mm
Panel Width	1134 mm
Short Circuit Current Isc	14.84 A
Isc	0.050
Temperature Coefficient Pmax	-0.260
Temperature Coefficient Voc	-0.220
Manufacturer Part Number	AIK-A-MCE54-485-BF-G3
Panel Performance Warranty	30 Year Linear
Warranty Years	15
