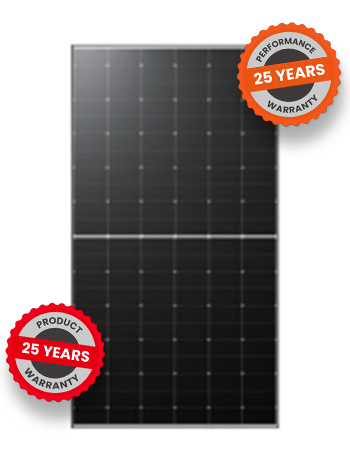

Longi Monocrystaline P Type – Explorer

LR5-66HTH-525M-BF

Longi's LR5-66HTH series uses a 66 cell high efficiency hybrid passivated back contact cell. This creates a beautiful looking, high performance module perfectly suited for commercial and ground mounted projects

Up to 22.5% Efficiency 420-440W
Maximum Series Voltage: DC1500V
<1.5%W First year Power Degredation
.40%W year 2-25 Power Degredation
Power Tolerance 0~3%
26.0Kg
Connector: MC4 EVO5
Product Warranty: 15 Years
Performance Warranty: 25 Years
Dimensions: 2094 × 1134 × 35mm

Winner of the 2021 Intersolar Award, RETC high achiever award 4 years in a row
Revolutionary Hybrid Passivated Back Contact (HPBC) Technology
High micro-crack resistance for improved reliability
Improved low light performance
Busbar-free design for excellent outdoor power generation performance
High temperature restriction for improved fire safety
Better temperature coefficient at -0.29%/℃

LONGi Hi-MO X6 Series Modules Product Video

Longi Company Video

Pending Documents: MCS certificate

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	LR5-66HTH-525M-BF
Wattage Rating	525 w
Half Cell	Yes
Maximum Power Current Imp	13.11 A
Maximum Power Voltage Vmp	40.06 v
Module Cell Type	Monocrystalline
Number Of Cells	120
Open Circuit Voltage Voc	47.73 v
Panel Depth	35 mm
Panel Height	2094 mm
Panel Width	1134 mm
Short Circuit Current Isc	14.12 A
Isc	0.048
Temperature Coefficient Pmax	-0.290
Temperature Coefficient Voc	-0.230
Manufacturer Part Number	LR5-66HTH-525M-BF
Panel Performance Warranty	25 Year Linear
Warranty Years	15

525W Hi-MO X6 Explorer Monocrystaline P Type 66 Black Frame MC4-EVO2
