AIK_G_MCH72_645_SF_DG_0

AIKO

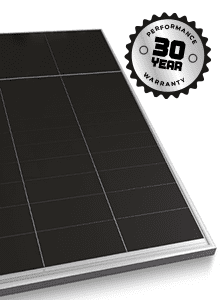

Aiko Stellar 1N+ 650W N-Type ABC 72 Cell Silver Frame Dual Glass Long Cable 01C Connector

AIK-G-MCH72-650-SF-DG

£90.00 exVAT (13.8p/Wp)
Sign in or create an account

Wattage Rating

650 w

Panel Height

2382 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – Aiko Stellar 1N+ EN

General Product Documents – AIKO V19 EN

General Product Documents – AIKO PV Modules

MCS Certificates – AIKO MCS PV0330 Issued June 2023

MCS Certificates – Aiko Solar Mw and Mb

Other Features

Aiko Monocrystaline N-type ABC - Stellar 1N+

AIKO-G650-MCH72Dw

A commercial panel with a very high efficiency of 24.0% to give investors faster ROI with the series standard elegant design.

  • Up to 24.4% Efficiency 645W-660W
  • Maximum Series Voltage: DC1500V
  • Panel Rating (650W) Efficiency: 24.1%
  • Cable Length: 1.4m
  • Connector: MC4 EVO2
  • Product Warranty: 15 Years
  • Performance Warranty: 30 Years

Aiko Key Features

  • Winner of 2023 intersolar innovation award, 2023 Red dot design award and 2024 ESG transparency
  • No.1 efficiency in the market
  • Cell-level partial shade optimisation (one and only in the industry)
  • High temperature restriction for fire safety
  • Micro-crack resistance
  • Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
  • Elegant no-busbar look

Videos



Technical Specifications

Segen Part No AIK-G-MCH72-650-SF-DG
Wattage Rating 650 w
Half Cell No
Maximum Power Current Imp 14.35 A
Maximum Power Voltage Vmp 45.30 v
Number Of Cells 144
Open Circuit Voltage Voc 54.00 v
Panel Depth 30 mm
Panel Height 2382 mm
Panel Width 1134 mm
Short Circuit Current Isc 15.06 A
Isc 0.050
Temperature Coefficient Pmax -0.260
Temperature Coefficient Voc -0.220
Manufacturer Part Number AIK-G-MCH72-650-SF-DG
Panel Performance Warranty 30 Year Linear
Warranty Years 15
