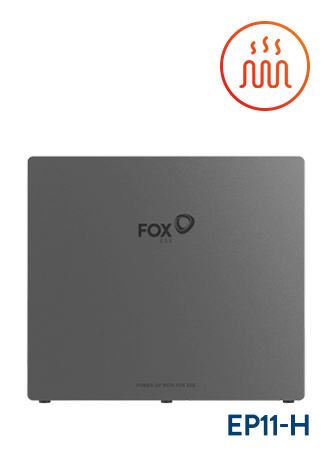

Fox ESS EP11 10.36kWh 384V Battery with Heating Element

Fox ESS

Fox ESS EP11 10.36kWh 384V Battery with Heating Element

FE-HV-EP11-H

£2,255.00 exVAT
Sign in or create an account

Battery Nominal Energy Wh

10368 Wh

Battery Nominal Voltage

384.00 v

Maximum Discharge Power

10368 w

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Fox ESS EP11-H EN

General Product Documents – Fox ESS EP11 EN

General Product Documents – Fox ESS EP11 EN

General Product Documents – FE HV EP11 V1.1 EN

General Product Documents – Fox ESS Battery V4.5

Other Features

Fox EP11-H

The EP11-H is a high-performance, scalable battery storage system, allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in parallel allowing for a maximum storage capacity of 41.6kwh.

  • Battery heating and fire suppression
  • Scalable to 41.6 kWh
  • 90% Depth of Discharge
  • Floor or Wall Mounting
  • Compact & Easy Installation
  • IP65 Protection Level
  • High Voltage and High Efficiency
  • 10-year warranty upon registration


  Please note that the EP-11/EP-12 are compatible together for storage expansion.



Technical Specifications

Segen Part No FE-HV-EP11-H
Battery Nominal Energy Wh 10368 Wh
Battery Nominal Voltage 384.00 v
Battery Type Lithium Ion
Depth Of Discharge 90.00 PERCENT
Max Charge Power Battery 10368 w
Max Charge Voltage 438.0 v
Maximum Discharge Power 10368 w
Recommended Discharge Power 5184 w
Manufacturer Part Number FE-HV-EP11-H
Warranty Years 10
Item Weight 100 Kg
