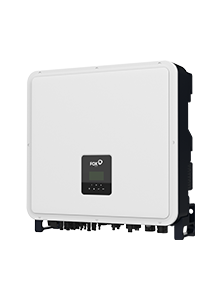

Fox ESS H3 Pro 25kW 3PH Hybrid Inverter

Fox ESS

Fox ESS H3 Pro 25kW 3PH Hybrid Inverter

FE-H3-PRO-25.0

£2,435.00 exVAT (9.7p/Wp)

Wattage Rating

25000 w

Storage System Type

Full Hybrid

Phases

Three Phase

Warranty Years

5

All Technical Specifications

Bundles that include this product

1 bundle

Documentation

General Product Documents – FOX H3 Pro Series - EN

General Product Documents – FOX H3 Pro Series - NL

General Product Documents – FOX H3 Pro Series - PL

Grid Certificates – Fox ESS H3 Pro Series EN

Grid Certificates – FOX H3 Pro Series NA-Schutz - DE/EN

Other Features

Fox ESS H3 Pro 25.0 three-phase hybrid inverter

  • 2 Battery Inputs
  • 3 MPPT trackers
  • Full three-phase emergency power capability
  • Two battery inputs for even easier connection of high-voltage batteries
  • Modern and functional design
  • Remote monitoring
  • 10-year warranty (5 years as standard and extendable to 10 years through registration)
  • Smart meter and WiFi dongle are included in the scope of delivery
This Inverter can have a MAXIMUM of 2 stacks with 7 modules per stack (1x Master + 6x Slaves), for a TOTAL of 2x Master + 12x Slaves.

FE-LAN-STICK not compatible with this range, please contact Fox for solution - service.uk@fox-ess.com (02475 100078)







Technical Specifications

Segen Part No FE-H3-PRO-25.0
Wattage Rating 25000 w
Storage System Type Full Hybrid
Max Ac Power 25000 w
Phases Three Phase
Dc Startup Voltage 160.00 v
Has Dc Isolator Yes
Max Dc Power Total 37500 w
Max Mppt Voltage 1000.00 v
Number Of Mppt 3
Manufacturer Part Number FE-H3-PRO-25.0
Warranty Years 5
Item Weight 57.50 Kg
