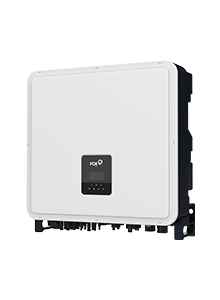

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter

Fox ESS

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter

FE-H3-PRO-30.0

£2,717.00 exVAT (9.1p/Wp)

Wattage Rating

30000 w

Storage System Type

Full Hybrid

Phases

Three Phase

Warranty Years

5

All Technical Specifications

Bundles that include this product

1 bundle

Documentation

General Product Documents – FOX H3 Pro Series - EN

General Product Documents – FOX H3 Pro Series - PL

General Product Documents – FOX H3 Pro Series - NL

Grid Certificates – Fox ESS H3 Pro Series EN

General Product Documents – FOX H3 Pro Series Quick Guide - EN

Other Features

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

  • 2 Battery Inputs
  • 3 MPPT trackers
  • Easy installation - Flexible configuration, Plug & Play, built-in fuse protection.
  • High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
  • IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
  • Remote Monitoring - Monitor remotely via app or web portal.

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh.

This Inverter can have a MAXIMUM of 2 stacks with 7 modules per stack (1x Master + 6x Slaves), for a TOTAL of 2x Master + 12x Slaves.

FE-LAN-STICK not compatible with this range, please contact Fox for solution - service.uk@fox-ess.com (02475 100078)

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.





Technical Specifications

Segen Part No FE-H3-PRO-30.0
Wattage Rating 30000 w
Storage System Type Full Hybrid
Max Ac Power 30000 w
Phases Three Phase
Dc Startup Voltage 160.00 v
Has Dc Isolator Yes
Max Dc Power Total 45000 w
Max Mppt Voltage 1000.00 v
Number Of Mppt 3
Manufacturer Part Number FE-H3-PRO-30.0
Warranty Years 5
Item Weight 57.50 Kg
