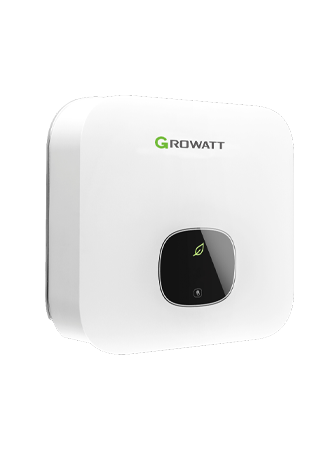

GROWATT MIN 2500TL XH Dual MPPT with DC

Growatt

GROWATT MIN 2500TL XH Dual MPPT with DC

GROWATT-MIN2500-TL-XH

£346.00 exVAT (13.8p/Wp)

Wattage Rating

2500 w

Phases

Single Phase

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – MIN-2500-6000 TL-XH EN

General Product Documents – 2500-6000 TL-XH CE EN

Grid Certificates – MIN2500-6000 TL-XH EN

Grid Certificates – Growatt MIN2500-6000 TL-XH EN

General Product Documents – MIN2500-6000 TL-XH Quick Guide EN

Other Features

Growatt inverters are designed for specifically for residential rooftop applications. With a maximum efficiency of 98% and wide input voltage range, this robust inverter is perfect for most domestic installs

Leading - edge Technology

·       Double MPPT Tracker, MPPT tracking accuracy more than 99.5%

·       Max. Efficiency 98%, European Efficiency 97%

·       Transformerless design and high power density, offer lighter and

·       more convenient installation

·       Comes with 10 years warranty

·       Power factor continuously adjustable

·       Flexible communication connection

·       Comply with European, Asia-Pacific safety regulations



Built in DC isolator and AFCI Protection.

   UK only: This inverter has been tested and certified according to G99, but only for units having most recent Firmware and Hardware version. Please check if the unit you are purchasing meets that criteria and if in doubt, please update the inverter firmware.

UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. It means all installers will need to register an ‘Installer Code’ for using the Growatt monitoring platform. This installer code can be provided to the end user by the installer to allow for the viewing of your customers devices from your installer-level monitoring account. For more information, please refer to the following document: Growatt Installer Code policy



Technical Specifications

Segen Part No GROWATT-MIN2500-TL-XH
Wattage Rating 2500 w
Max Ac Power 2500 w
Phases Single Phase
Dc Startup Voltage 100.00 v
Has Dc Isolator Yes
Max Dc Power Total 3500 w
Max Mppt Voltage 500.00 v
Number Of Mppt 2
Manufacturer Part Number MIN2500TL XH
Warranty Years 10
Item Weight 13.62 Kg
