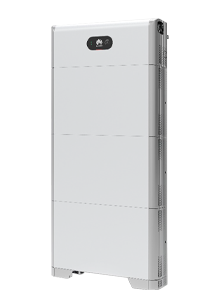

Huawei LUNA 15KWh Battery PACK

Huawei

Huawei LUNA 15KWh Battery PACK

SUN2000-LUNA-15KWh

£6,951.00 exVAT

Battery Nominal Energy Wh

15000 Wh

Battery Nominal Voltage

600.00 v

Maximum Discharge Power

5000 w

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Update Fusion App - DE

General Product Documents – Huawei Luna

General Product Documents – MSDS

General Product Documents – Attestation of Conf

General Product Documents – Huawei Luna

Other Features

Smart String Energy by Luna

 This is the complete 15KWh Luna Battery

Product Features

  • Flexible due to 5KWh that can be easy scaled from 5KWh to 30KWh
  • 100% DOD pack level energy optimization
  • Easy to install due to 12Kg power module and 50Kg battery module
  • Lithium Iron Phosphate cells resulting is safe and reliable battery
  • Auto Detected by battery
  • Compatible with single and 3 Phase inverters
  • Battery fault on module auto isolates to keep system safe
  • this consists of 3 x battery modules and 1 x power module
  • Nominal voltage of battery is 600VDC
  • max output per 15KWh battery is 5000W
  • 10 year warranty
  • max is 2 x systems in parallel
  • RS485 BMS communication
  • IP66

Technical Specifications

Segen Part No SUN2000-LUNA-15KWh
Battery Nominal Energy Wh 15000 Wh
Battery Nominal Voltage 600.00 v
Battery Type Lithium Ion
Depth Of Discharge 100.00 PERCENT
Max Charge Power Battery 5000 w
Max Charge Voltage 980.0 v
Maximum Discharge Power 5000 w
Recommended Discharge Power 7500 w
Warranty Years 10
Item Weight 170.20 Kg
