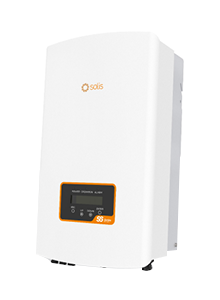

S6 8.0kW Dual MPPT - Single Phase with DC

Solis

S6 8.0kW Dual MPPT - Single Phase with DC

SOL-8.0-S6-DT-DC

£700.00 exVAT (8.8p/Wp)
Sign in or create an account

Wattage Rating

8000 w

Phases

Single Phase

Warranty Years

5

All Technical Specifications

Documentation

General Product Documents – Solis Datalogger Guide

General Product Documents – S6-GR1P-8K2 EN 2024

General Product Documents – S6-GR1P-8K

General Product Documents – Frequency Shift Setup

General Product Documents – Europe 2021

Other Features

S6-GR1P8K2

  • Max. efficiency 97.7%
  • String current up to 18A/32A
  • Wide voltage range and low startup voltage
  • 2 MPPT design with precise MPPT algorithm
  • Integrated Export Power Manager (EPM)
  • AFCI protection, proactively reduces fire risk
  • Compact and lightweight
  • Friendly and adaptable connection to the grid

Technical Specifications

Segen Part No SOL-8.0-S6-DT-DC
Wattage Rating 8000 w
Max Ac Power 8000 w
Phases Single Phase
Dc Startup Voltage 120.00 v
Has Dc Isolator Yes
Max Dc Power Total 10400 w
Max Mppt Voltage 520.00 v
Number Of Mppt 2
Manufacturer Part Number S6-GR1P8K2
Warranty Years 5
Item Weight 15 Kg
