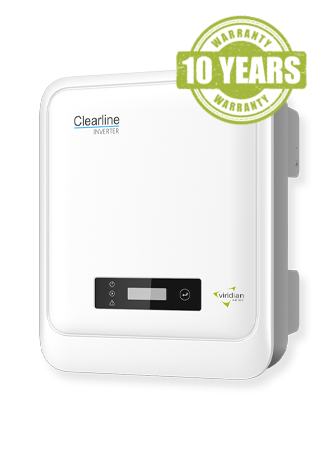

Viridian Clearline 3.6kW 1PH Inverter 2MPPT with integrated DC isolator switch

Viridian

Viridian Clearline 3.6kW 1PH Inverter 2MPPT with integrated DC isolator switch

VIR-CSI3600

£378.00 exVAT (10.5p/Wp)
Sign in or create an account

Wattage Rating

3600 w

Phases

Single Phase

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Viridian Clearline 3.6-6.0 kW Inverter EN

General Product Documents – Viridian Clearline 3.6-6.0 kW Inverter EN

General Product Documents – Viridian Clearline 3.6-6.0 kW Inverter EN

Other Features

Viridian Clearline Inverter - 3.6kW

  • Single Phase, 2 MPPT
  • DC switch and surge protection
  • Max efficiency of 97.9%
  • IP65 rated
  • 10 year warranty
  • Smart Control - Generation monitoring and optional export limitation

Technical Specifications

Segen Part No VIR-CSI3600
Wattage Rating 3600 w
Max Ac Power 3600 w
Phases Single Phase
Dc Startup Voltage 180.00 v
Has Dc Isolator Yes
Max Dc Power Total 5400 w
Max Mppt Voltage 600.00 v
Number Of Mppt 2
Manufacturer Part Number VIR-CSI3600
Warranty Years 10
Item Weight 13 Kg
